Key Features of 3D Inspection with CAD Model

• Accurate 3D Comparison Against CAD Models:Precisely compares physical part geometry against original 3D CAD models to ensure complete dimensional accuracy.
• Comprehensive Quality Control Process:Enables full 3D inspection of complex parts, identifying deviations in form, size, and surface geometry from the design intent.

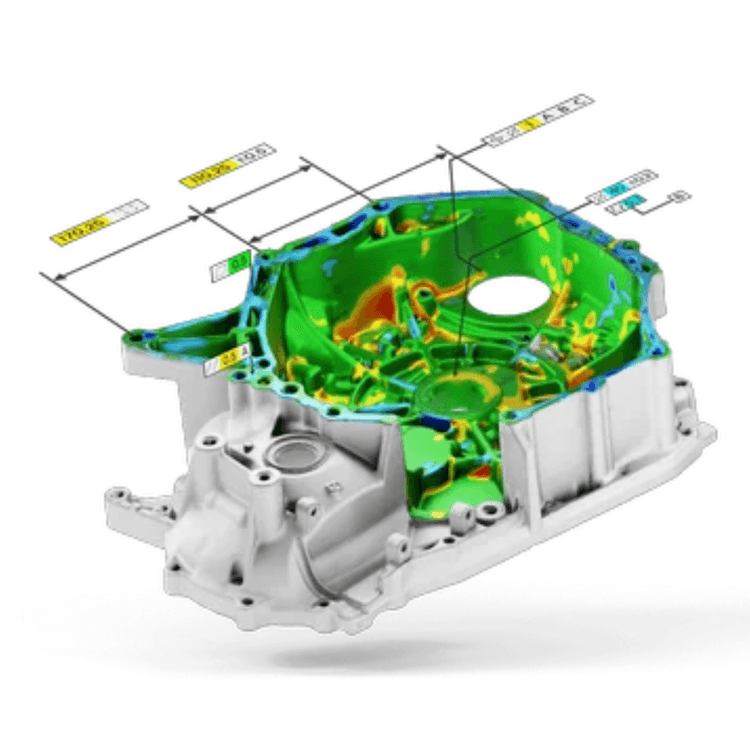

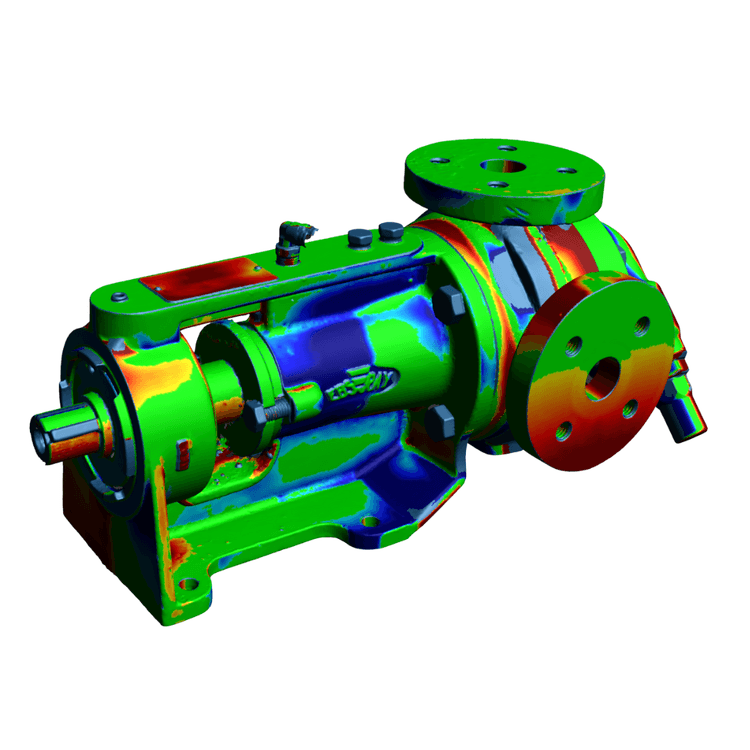

• Detailed Color Map Visualization of Deviations:Instantly displays differences between the scanned part and CAD model using intuitive color maps for quick interpretation of results.
• Supports Complex and Freeform Surfaces:Perfect for inspecting curved, organic, or highly intricate geometries that are difficult to measure using traditional methods.
• Automatic Reporting with Traceability:Generates comprehensive inspection reports with annotated CAD comparisons, aiding in quality assurance and production traceability.
• Supports Standard CAD Formats (e.g., STEP, IGES, STL):Directly imports CAD models into inspection software, enabling seamless and precise model-to-part comparison.
• Non-Contact and Non-Destructive Testing:Utilizes advanced optical or laser scanning techniques to capture the entire part surface without touching or damaging it, ideal for sensitive components.
