Key Features of CMM Inspection

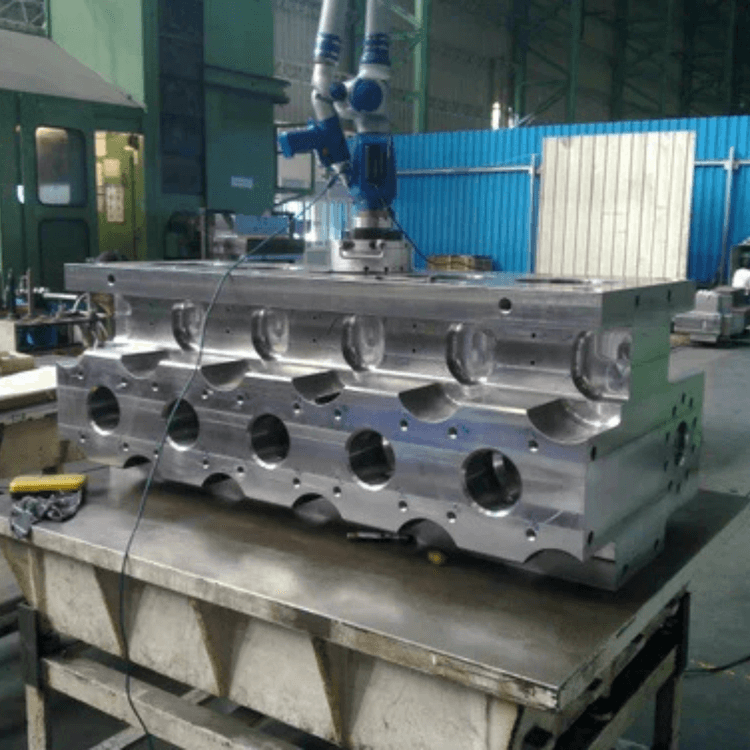

• High Precision Dimensional Measurement:Uses coordinate measuring machines (CMM) to measure precise geometrical characteristics of complex parts with micrometer accuracy.
• Automated Measurement Process:Programmed measurement routines enable consistent, repeatable inspections without manual intervention, improving reliability and efficiency.
• Comprehensive Geometrical Analysis:Captures detailed data including length, width, height, angles, radii, and surface flatness, enabling complete verification of design specifications.
• Supports Complex and High-Precision Components:Ideal for measuring intricate parts such as molds, precision mechanical components, and aerospace assemblies with strict tolerance requirements.
• 3D Mapping and Color Deviation Visualization:Displays inspection results with color-coded deviation maps, clearly indicating areas where measured data deviates from the nominal design.
• Automatic Reporting with Traceability:Generates detailed inspection reports including measurement results, deviation maps, and compliance assessment, supporting quality control and audits.

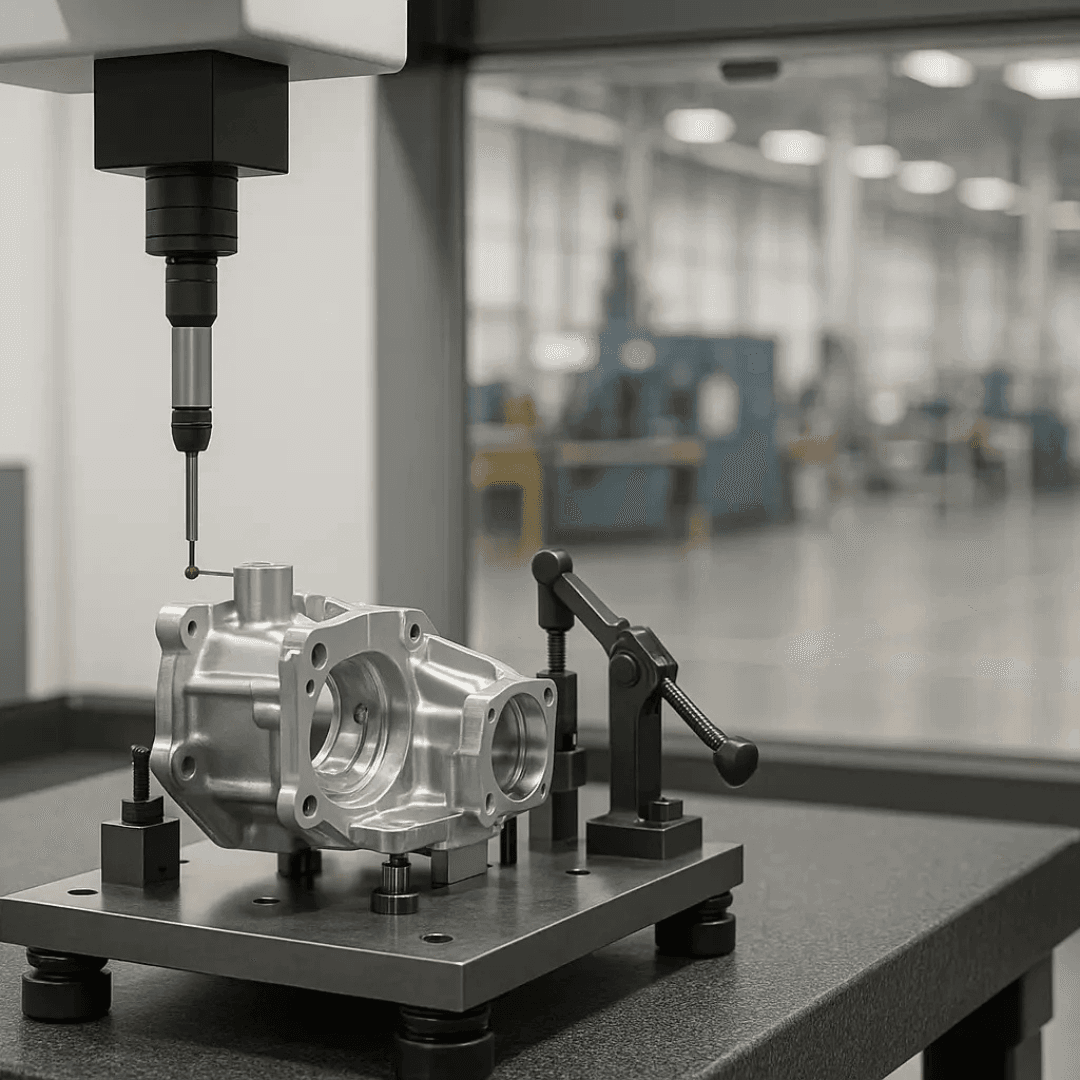

• Contact or Non-Contact Probes Available:Supports various probing methods – touch-trigger probes for precise point measurements, and non-contact optical probes for fragile or complex surfaces.
